| Size | 6000mm*1500mm |
|---|---|
| Двигатель | VSD fan |
| Исполнение | Black steel and stainless steel |
| Диаметр | 160mm, extender 300mm |
| Width | 1500mm |
| Производительность | 250-300 kg/h |
| Поток воздуха | Straight |
| Вид топлива | Wood waste |
All standard delivery orders are handled by GLS, except for Germany, which is handled by DHL. 2-5 working days
All express deliveries are handled by DHL. Anywhere in the EU: 1-2 working days
Cash
Visa and MasterCard
PayPal
Warranty 12 months
Aerodynamic drying systems are designed to dry fine fractions of wood waste (sawdust, wood chips, wood processing waste) using hot air flow. The main source of heat is a solid fuel boiler that creates the required temperature in the pipeline.

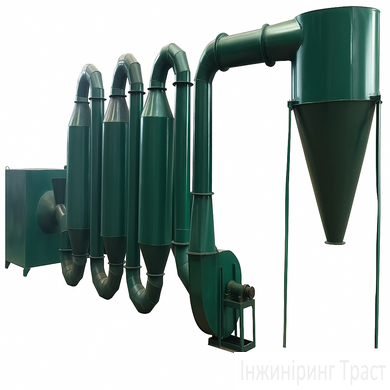

The AS-300 aerodynamic drying complex is used to dry sawdust (wood chips) before its further processing. The main task is to reduce the moisture level in the raw material from 60% to 8-12%.
The drying complex has a capacity of 250-300 kg/h
solid fuel boiler;
spark arrestor and flame arrester;
Dust exhaust fan with a dust collector;
pipeline with a dust cyclone air cleaner and support frame;
temperature sensor for temperature control.
Our company will manufacture the equipment in accordance with the client's requests and specifications.
We look forward to successful cooperation!
